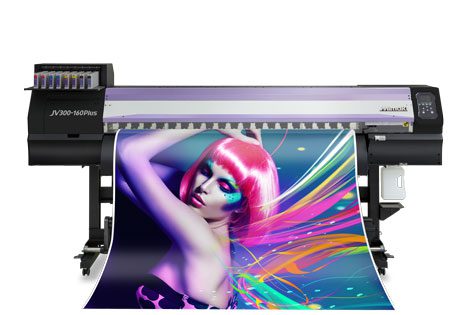

JV300-160plus

Achieve high quality faster, wide-format inkjet printer

With the latest Mimaki Advanced Pass System (MAPS4), the new JV300-160plus printer produces high quality printing at a faster printing speed. The enhanced work efficiency combined with eco-solvent inks, offers both ecological and economical benefits. It also comes with a new take-up device capable of handling rolls up to 45kg, which prevent media shifting and ensure smooth production.

High speed production
Continuous operation
Sustainable and economical efficiency
  • New Mimaki Eco-cartridge 600ml SS21 ink packs for increased production efficiency
  • MAPS4 for reduced banding and uneven colour
  • 8-colour configuration with SS21 inks allowing up to 95% of Pantone Coated range
  • New take-up device handling rolls up to 45kg that prevent media shifting
  • Reduced running costs with Mimaki BS4 solvent-based ink
  • NCU & NRS ensure unattended continuous printing

Create…

Signage, vehicle graphics, PoS, banners, posters, fashion and sportswear, promotional, exhibition graphics, stickers, garment marking, canvas prints and much more…

The JV300-160Plus printer is also available for dye sublimation transfer printing and indoor graphics.

Specifications of JV300-160plus

ItemJV300-160 Plus
PrintheadOn-demand piezo head (2 staggered printheads)
Print resolution360 / 540 / 720 / 1,080 / 1,440dpi
Maximum print widthUp to 1,610mm (63.3”)
Maximum media widthUp to 1,620mm (63.7”)
InkType / Colour (*1)Eco-solvent:

–         SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W)

–         ES3 (C, M, Y, K, Lc, Lm, W)

–         BS3 (C, M, Y, K)

–         BS4 (C, M, Y, K)

Water-based sublimation ink:

–         Sb54 (Bl, M, Y, K)

Package size (*2)SS21: 440ml Ink cartridge, 600ml/2L Ink pack

(White: 220ml ink cartridge only)

BS3/BS4: 600ml/2L Ink pack

ES3: 440ml Ink cartridge

(White: 220ml ink cartridge only)

Sb54: 400ml Ink cartridge/2L Ink pack

Circulation systemMCT (Mimaki Circulation Technology) only applies white ink
Media thickness1.0mm or less
Rolled media weight45kg (99.2lb) or less
InterfaceUSB 2.0 / Ethernet 1000BASE-T
Power supplySingle-phase (AC100-120V) / AC200-240V) x 2 50Hz / 60Hz ±1Hz 1Hz
Power consumption1440W x 2 or less (AC100V) / 1920W x 2 or less (AC200V)
Operational environmentTemperature: 20ºC-30ºC (59-86ºF)

Humidity: 35-65% RH (non-condensing)

Dimensions (W×D×H)2,775 x 700 x 1,392mm (109” x 28” x 55”)
Weight200kg (440.9lb)










Mimaki eco & mild solvent inks are GREENGUARD Gold certified.






JV300-160plus ink Sb54 is ECO PASSPORT by OEKO-TEX® certified.




Mimaki’s JV300-160plus compatible SS21 mild solvent ink meets the chemical requirements of the Nordic Swan Ecolabel program for printing companies.



Features of JV300-160plus

With the latest Mimaki Advanced Pass System (MAPS4), the new JV300-160plus produces high quality printing at a faster printing speed. The enhanced work efficiency combined with eco-solvent inks, offers both ecological and economical benefits. It also comes with a new take-up device capable of handling rolls up to 45kg, which prevent media shifting and ensure smooth production.

Choose between solvent or dye sublimation


Solvent

  • From text and illustrations to photographs, the combination of Mimaki’s unique inkjet technology and solvent ink delivers vibrant high quality print results

JV300-160Plus Solvent






Dye sublimation

  • The combination of fast drying water based sublimation ink and Mimaki inkjet technology produces beautiful, high-quality vibrant colour printing on polyester fabrics

JV300-160Plus Dye Sublimation






600ml eco pack

SS21 ink is now available in eco-friendly 600ml packs

  • The new SS21 600ml ink pack reduces ink costs by approximately 15% compared to the previous 440ml packs
  • Higher ink capacity reduces the need to replace the cartridge, making it efficient and economical
  • Mimaki eco cases are reusable for the larger 600ml ink bags
  • 600ml packs are available in CMYK only, but can be combined with 440ml cartridges of other colours

JV300-160Plus 600ml Eco Pack








Stunning quality with SS21 inks

SS21 with orange ink

  • Newly formulated SS21 orange ink, SPC‐0501Or‐2, provides a wider colour gamut range, enabling higher colour accuracy, better vibrancy, smoother image gradations and greater outdoor durability
  • Covering approx. 94.8% of the PANTONE coated colour chart, 7% more compared to 4C
  • The large colour gamut makes it possible to reproduce more corporate colours

JV300-160plus SS21 Orange Ink
















SS21 with light black ink

  • High quality monochrome colour reproduction with the new Light-Black ink
  • High colour balance without colour shifting, reproducing high quality, smooth grey output

JV300-160plus SS21 Light Black Ink














SS21 high density white ink

  • Vivid colour printing on transparent/coloured media, by under-laying white ink before printing the colours
  • Higher opacity is attained by using a larger ink droplet

New take-up device

Heavy take-up device

  • An improved standard-included take-up system designed for handling a wide range of media up to 45kg

Newly designed Media Edge Guide

  • A standard accessory that guides the media during take-up and results in perfect winding without skewing

JV300-160plus take-up device








NCU and NRS

Automatic maintenance for uninterrupted printing

  • Continuous unattended operation by combining the Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS)
  • Requires less operator maintenance time and less media waste, compared to competitors

JV300-160Plus NCU and NRS
















MAPS4 for high image quality

Reduce printer banding with MAPS4

  • The potential for banding and uneven colour is greatly reduced with the 4th generation of Mimaki’s Advanced Pass System, MAPS4
  • MAPS incorporates an advanced algorithm for printing boundaries between passes, giving you beautiful quality prints with a smooth appearance
  • Compared to MAPS3, MAPS4 allows you to print even faster while preventing banding

mimaki maps 4










Print head durability

White ink with Mimaki Circulation Technology (MCT)

  • MCT accomplishes stable production and reduction of ink discharge and waste
  • Prevents pigment sedimentation by periodically circulating the white ink in the ink tank and through the ink tubes

JV300-160Plus MCT










Automatic Wiper Cleaning

  • The rest ink on the wiper is automatically removed during the cleaning procedure of the print head
  • No damage to print head caused by a dirty wiper
  • Less daily maintenance while enlarging the lifetime of the print head

JV300-160Plus Automatic Wiper Cleaning












ID cut for Mimaki’s print and cut combo

Automate the cutting process

  • Using ID CUT function enables an operator to contour cut multiple jobs without intervention
  • Trouble-free cutting without operator mistakes, saving time and material waste

JV300-160Plus Print Cut Combo












JV300-160plus ID-cut process














Workflow

  • Generate your labels with FineCut9
  • RL6 Plus prints the ID code between the crop marks
  • ID code includes cutting and rotation information
  • The crop mark sensor reads the ID code and automatically executes cutting

JV300-160Plus Workflow








Rasterlink6Plus













Mimaki eco & mild solvent inks are GREENGUARD Gold certified.






JV300-160plus ink Sb54 is ECO PASSPORT by OEKO-TEX® certified.




Mimaki’s JV300-160plus compatible SS21 mild solvent ink meets the chemical requirements of the Nordic Swan Ecolabel program for printing companies.
